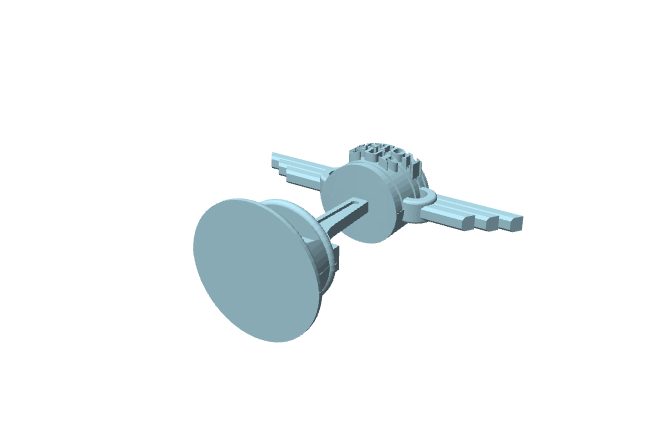

The crosshead piston is a mechanical component featuring a circular disc and a crosshead with side fins, designed to convert reciprocating motion into rotary motion within gear mechanisms. Its compact structure with side pins makes it suitable for assembly in educational mechanical systems, working models and custom construction projects. The overall dimensions are 202 mm in length
- Mechanical component with disc and crosshead
- Converts reciprocating motion into rotary motion
- For side pins for assembly
- Suitable for models and educational mechanisms
- Overall length 202 mm
